The Challenge
Underground mining operations face a permanent and escalating threat from water ingress. A single flooding event can mean loss of life, destruction of critical infrastructure, extended production shutdown, and dewatering costs running into hundreds of millions of dollars.
The Venetia Underground Project required a flood barrier capable of sealing irregular rock haulage tunnels against water heads from 50 m to 3,000 m — while maintaining full operational access and integrating with existing mine services.
No commercially available system met all four requirements. ASDE designed a solution from first principles.
Engineering Approach
ASDE developed the WaterDoor – Flood Guard™ over ten years of materials science R&D. The design methodology for each installation follows a three-stage nonlinear FEA-driven process:

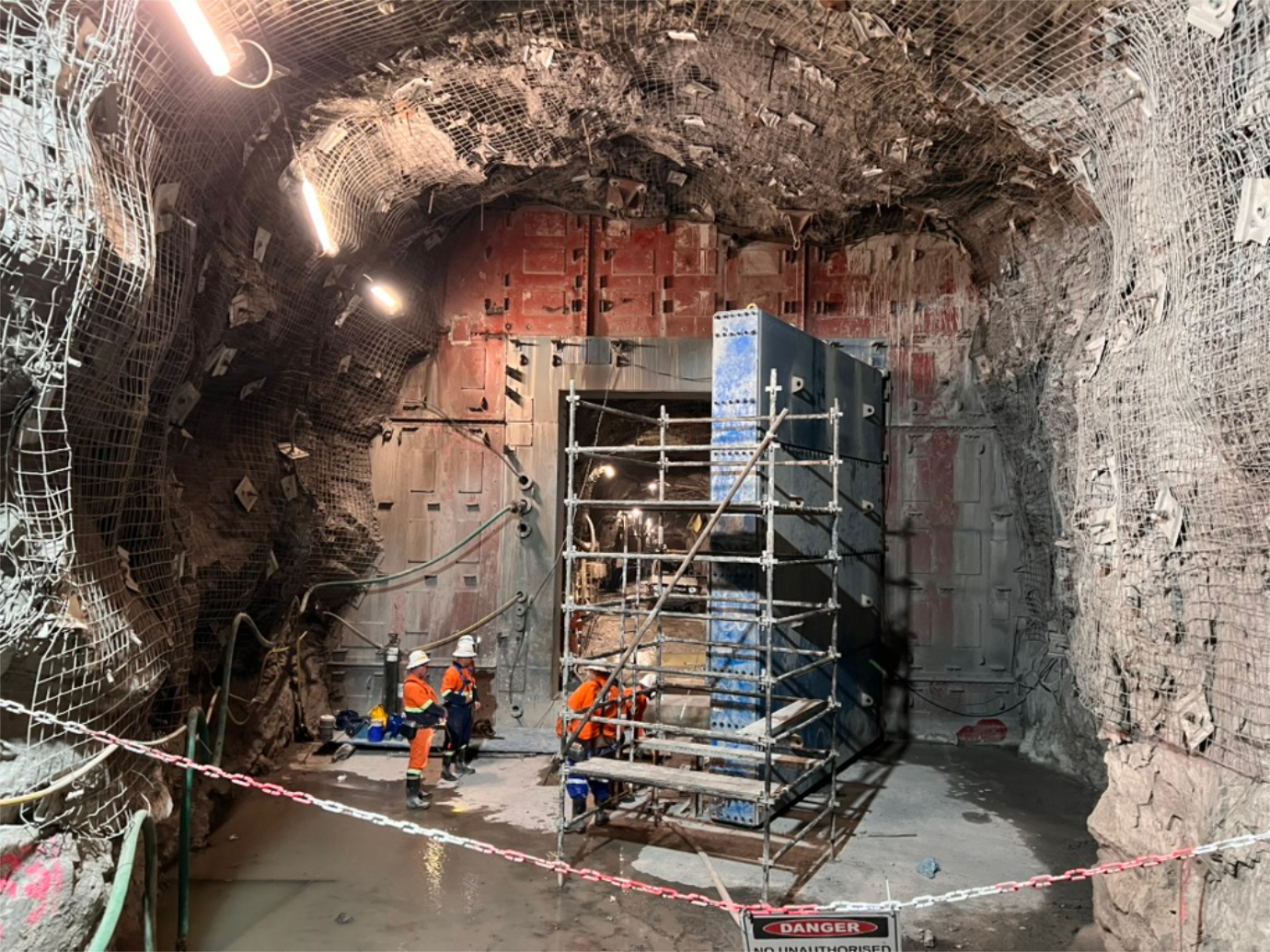

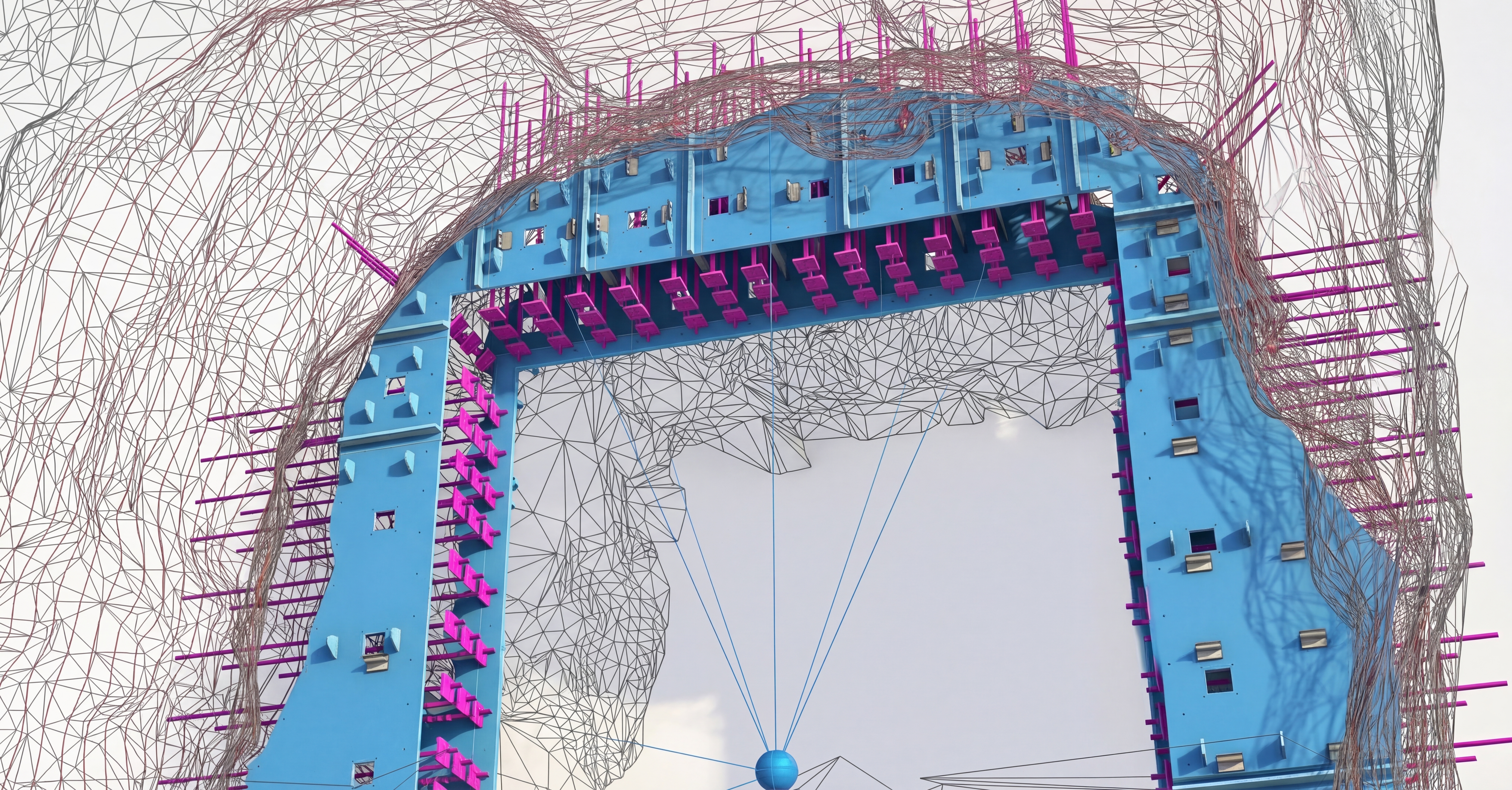

- 3D geometric survey of the existing haulage cross-section, capturing irregular blasted rock profiles.

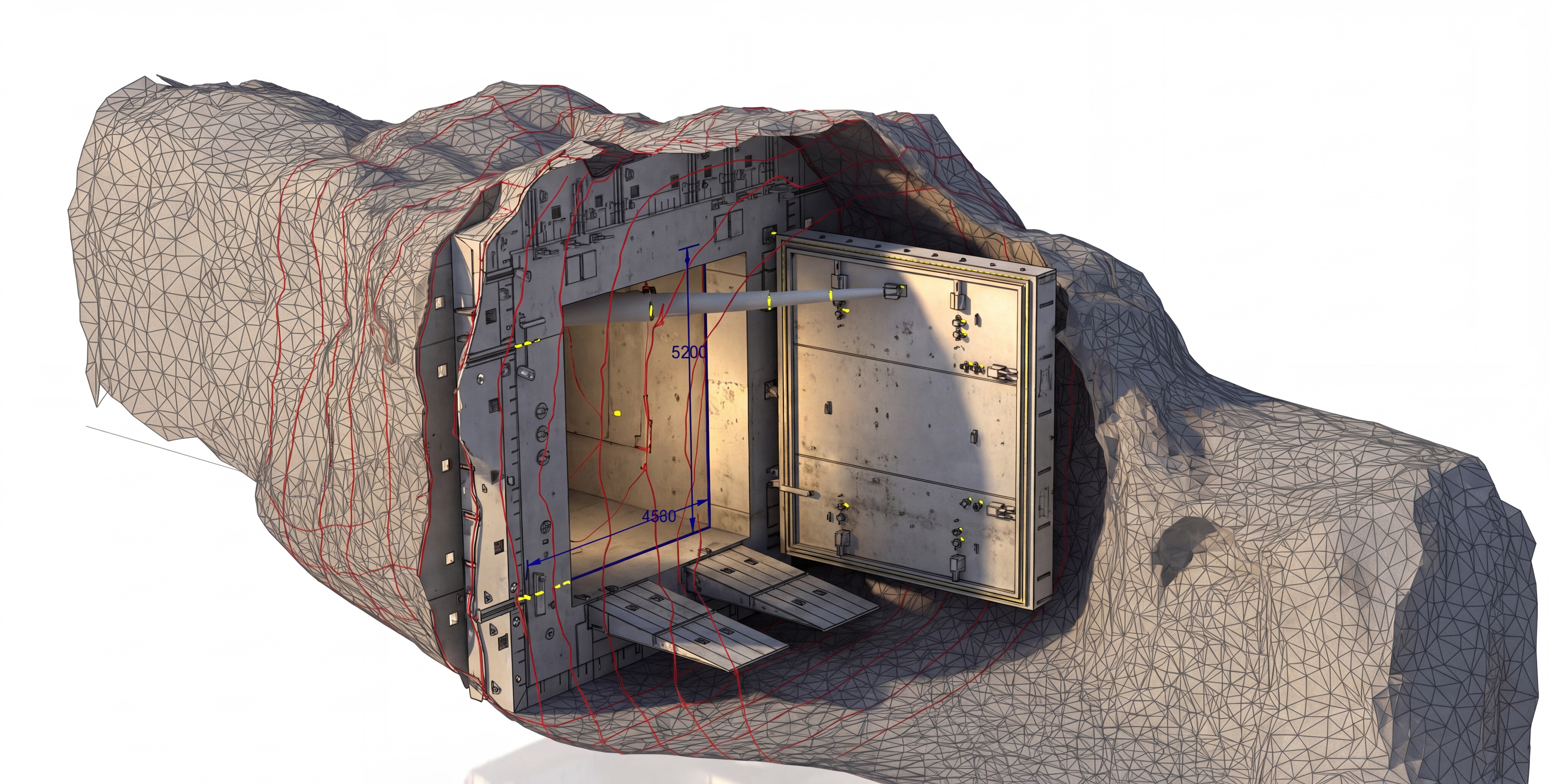

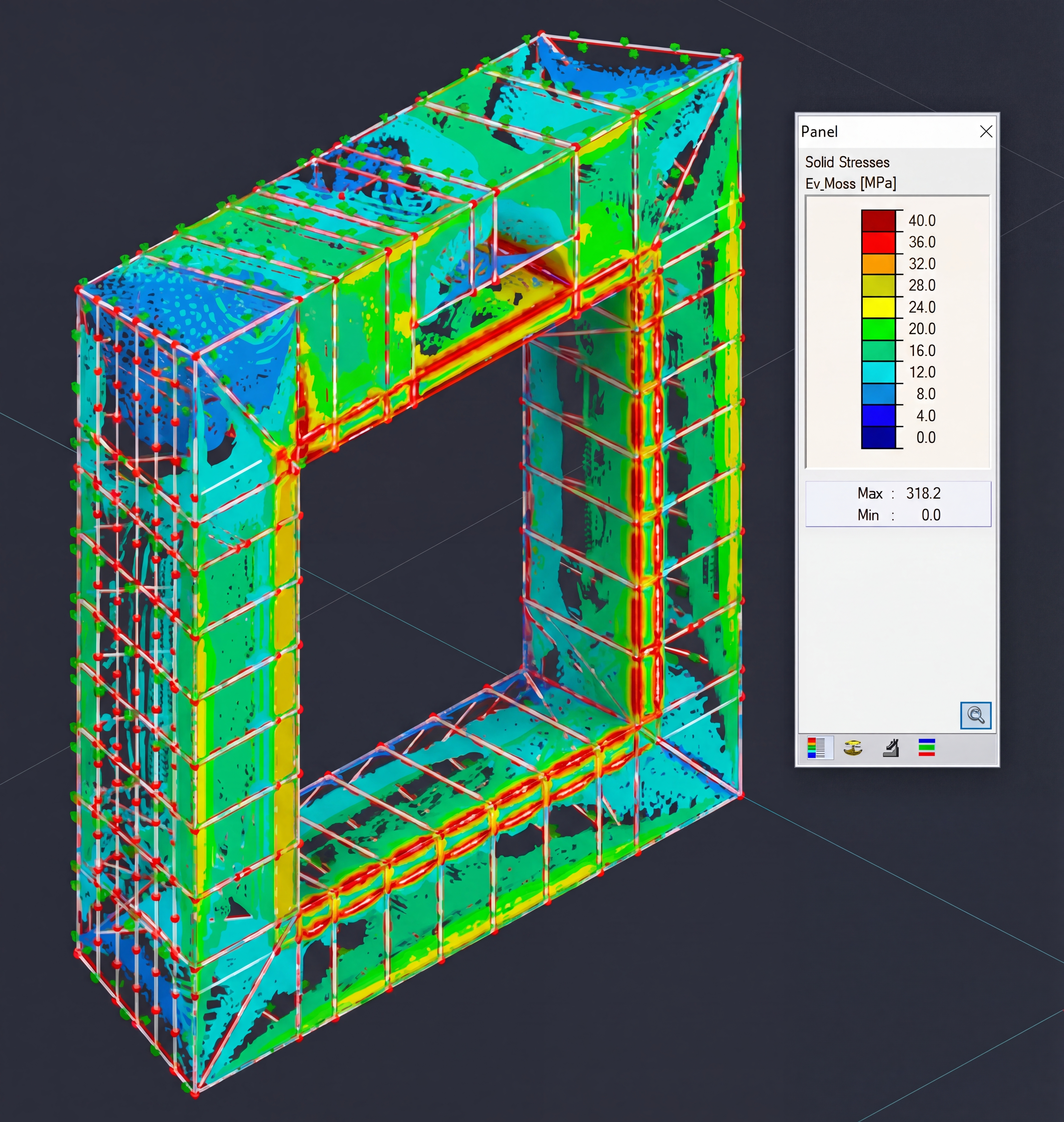

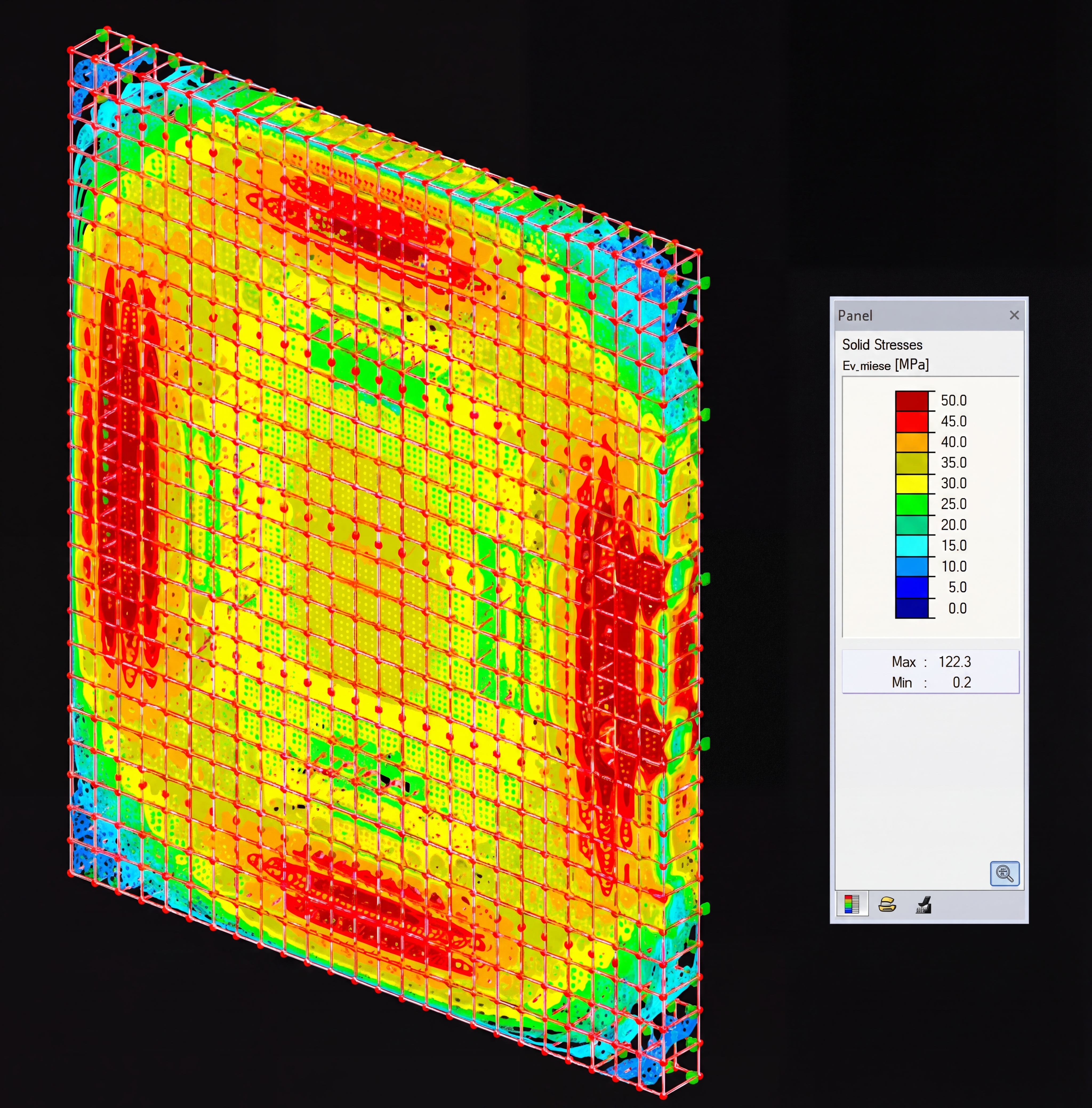

- Nonlinear finite element analysis (RFEM energy method) determining stress distribution under design water head, sizing the door leaf, frame, and anchor rod schedule to the specific tunnel geometry.
- Composite construction integrating structural steel, concrete, and proprietary RCK100 100 MPa epoxy cement, anchored via CF-ROD 1300 carbon-fibre rods at 1,300 MPa tensile strength.
The pressure-activated WD-SEAL 800 elastomeric seal ensures performance increases proportionally with rising water head — the system becomes more effective precisely when it is needed most.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Design water head range | 50 m – 3,000 m |
| Max pressure rating | 294 bar (29,400 kPa) |
| Epoxy cement (RCK100) | 100 MPa compressive strength |
| Anchor rod (CF-ROD 1300) | 1,300 MPa tensile strength |
| Seal system | WD-SEAL 800 — pressure activated |
| Emergency closure | 15 minutes (full cycle) |
| Adaptive geometry | Horseshoe, arched, irregular rock |
| Analysis method | Nonlinear FEA — site-specific |
| Design life | 25+ years |
16 December 2024 — Venetia Underground Mine: A major water ingress event released an estimated 15,000–20,000 m³ into the underground workings. All nine commissioned WaterDoor – Flood Guard™ units activated and held under load. Zero failures. Zero casualties. Value of infrastructure protected: $400–600 million.
The Result
The December 2024 event at Venetia transformed the WaterDoor from innovative technology to proven life-saving infrastructure. De Beers (Anglo American) subsequently designated the system as the reference standard for underground flood protection across their operations.
South African mine safety regulators began citing the Venetia event as the new engineering benchmark for water barrier design. The $30M total investment across nine units delivered a demonstrated return of 13–20× on a single event.
The system has since been presented to international mining and infrastructure clients as the first operationally validated flood barrier designed for extreme-head underground conditions.
